Product Details:
|
| Type: | 300w-50kw | Material: | FRP Material |
|---|---|---|---|
| Surface Treatment: | Gel Coat | Process: | Hand Lay Up RTM SMC |
| Application: | CE ISO9001 | ||
| High Light: | fiberglass wind turbine blades,frp wind generator blades |
||

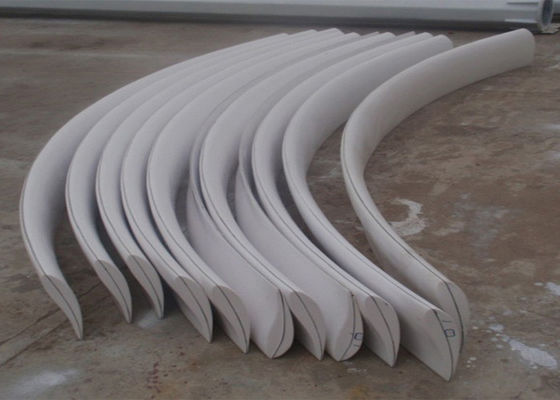

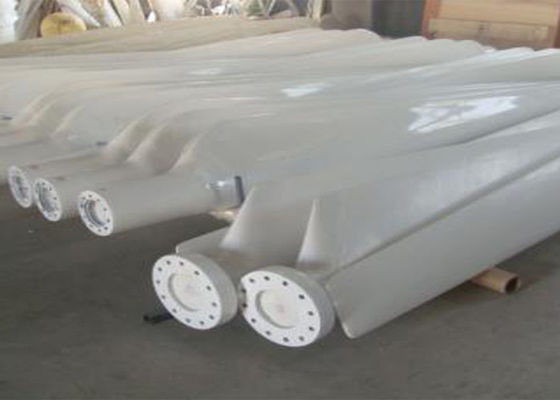

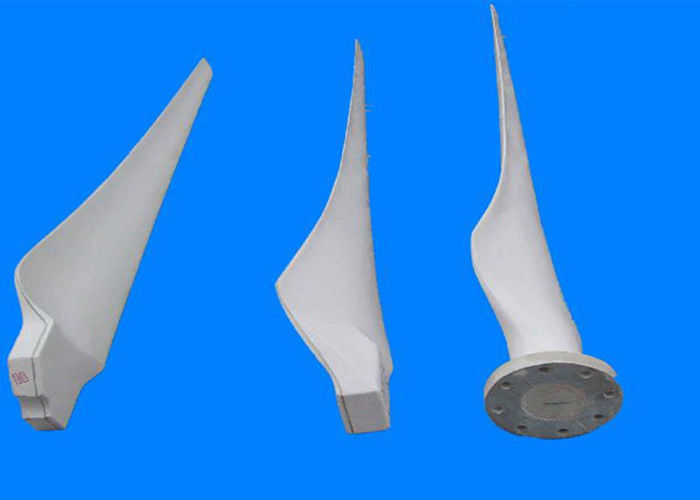

wind turbine generator FRP Blades
| Type(Power) | Lenth of blade m | weight/pcs(kg) | srart wind speed(m/s) | |
| 1 | 300w(S.L) | 0.6-0.7 | 0.75 | 2.5 |
| 2 | 400w(S.L) | 0.84 | 0.9 | 2.5 |
| 3 | 300w | 1.05 | 1.5 | 2 |
| 4 | 300W | 1.25 | 2.2 | 2.5 |
| 5 | 500W | 1.3 | 2.5 | 2.5 |
| 6 | 600W | 1.4 | 2.6 | 2.8 |
| 7 | 1KW-1.5kw | 1.55 | 3.6 | 3 |
| 8 | 2KW | 2 | 8 | 2.8 |
| 9 | 2KW | 1.8 | 5 | 2.5 |
| 10 | 3KW | 2.25 | 8.75 | 2.5 |
| 11 | 2.5 | 12 | 3 | |
| 12 | 3kw panel | 2.3 | 8.5 | 3 |
| 13 | 5kw panel | 2.6 | 10 | 3 |
| 14 | 5KW | 3 | 15 | 2.8 |
| 15 | 10KW flange | 3.5 | 32 | 2.8 |
| 16 | 10kw panel | 3.4 | 25 | 2 |
| 17 | 10kw panel | 3.9 | 40 | 2.8 |
| 18 | 20KW | 4.8 | 80 | 3 |
| 19 | 30kw | 6 | 120 | 3 |
| 20 | 50KW | 6.4 | 145 | 3 |
| 8.8 | 260 | 3 | ||
* Low start wind speed
* Good performance in endurance resistance
* Strength enough can meet the request of out of control running
* No noise Below 65 dB
* Special edge protection technology ,Avoid Wind ,sand, snow, Salt fog erosion protection
* Low wind resistance(Surface rude treatment & with special protection coat)
* Easy balance,running stable.
Packaging & Shipping
1. Wind generator blades use inner foam protection outer Plywooden case .
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .small blades can delivery by DHL FEDEX etc.
If you have any request in package and shipping please tell our sales we will do according to your request.
After Sale Service
All wind generator blades are free 1 year warranty, Lifelong maintenance
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
FAQ
1. Q: Can I buy a sample only ?
A: Very of course . Sample we can give special price .
2. Q: Do you have nose cone or hub for match the blades?
A: yes we have FRP nose cone and hub plate too.
3.Q:Wich model is suitable for my wind generator ?
A: Plese contact our sales with following points :
1. What is your wind turbine rated power.
2. Its design Rated wind speed .
Any other questions ,please feel free to contact us .Our top sales will give you best service!
