Product Details:
|
Material: | Fibreglass Reinforced Plastic | Color: | White Black Brown Blue Etc |
---|---|---|---|
Technolgy: | Hand Lay Up RTM SMC | Surface: | Gel Coat Paint |
Product Name: | Tractor Dash Board/frp Tractor Hoods/fiberglass Engine Cover/frp Shrouds/frp Fender | Size: | Standard Size, According To Your Requests, Customized, Workable |
High Light: | fiberglass reinforced plastic pipe,large diameter fiberglass pipe |

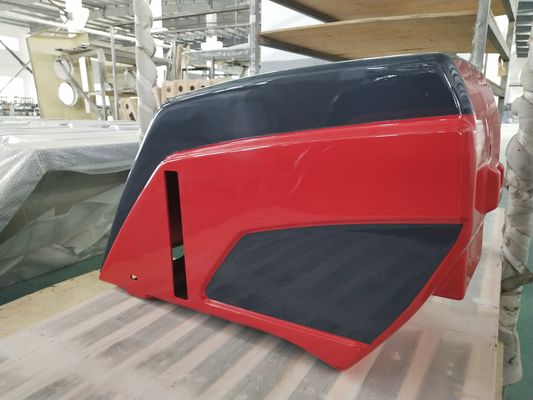

tractor dash board/frp tractor hoods/fiberglass engine cover/frp shrouds/frp fender
Details:
Place of Origin:Qingdao Shandong, China (Mainland)
Brand Name: Lanmon
Model Number:Customized
Application:Various Fields
Surface Treatment: Gel coat Or Paint
Technique:Hand Lay-up RTM SMC
Material:Fibreglass Reinforced Plastic
Certificate:ISO9001
Specifications:
Key Specifications/Special Features:
1st:Mould treatment:
Polish: Mould must be polished before production which will guarantee the good and solidified surface
Clean: Special detergent are used to get the dust away from the mould which will make no dark markings in the
gel coat surface.
Release agent: This will be brushed on the mould to make ejection easily.
2nd Fiberglass and resin:
Gel coat: The color of products is decided by the gel coat,with thickness of about 0.3-0.5mm. UV resistant can
be added.
Surface mat: This is to avoid the air bubble on the surface, and also make fiberglass mat invisible from the finished
surface.
Fiberglass mat: Normally we use 300g/m2 (0.6mm thickness) and 450g/m2 (0.9mm thickness). According to your
requests on the thickness and strength, we will calculate how many layers of fiberglass mat should be used.
3rd
Solidify: The time required for solidifying depends on thickness and weather condition.Normally 24 hours for one
piece to solidify to avoid any deformation after demoulding.
Demould: After solidified, the product will be demoulded
Cut and trim: We will mark the trim line and hole positions on the mould,then trim according to the marks to
gaurantee the mounting dimensions
4th Adhesion: Professional mould and Temperature and worker
5th Surface treatment :
6th Painting
7th Package Solution:
Our principle: Safe and economical
We choose economical packaging on condition that there will be no damage during transportation.Shipping: We are very glad to get the freight cost information for you
as we have long term cooperated forwarder company.
Process: Hand-lay up
In the hand lay-up process, the laminate structure, commonly a single continuous strand glass mat, a woven glass mat or an advanced composite mat is manually “hand-laid” in the mold. The catalyzed thermoset resin is introduced, and the materials are formed to fit the mold surface using a “roll-out” process, as well as a number of specialized laminating tools. Additional layers of reinforced mat can be added to key structural points to enhance rigidity and performance. The Hand lay-up process is most effective when molding complex surfaces, and is commonly used in the transportation, recreation, medical, and agricultural markets.
Benefits of Composites
• Strong, durable – long life under even extreme weather exposure
• Lightweight – easy to transport and install
• Reinforcement offer superior sidewall strength
• UV protection
• Fire retardant
• Fast turn-up on production
Value Added Services
• Materials formulated for UV-stability, stain-resistance
• Engineering and design support
Quality and Other Certifications
• ISO-9001
