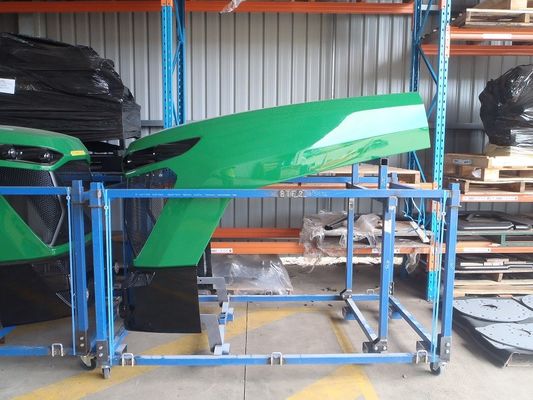

UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001

Certification
China Qingdao Lanmon Industry Co., Ltd certification
China Qingdao Lanmon Industry Co., Ltd certification
I'm Online Chat Now

UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001

UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001
UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001
UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001 UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001 UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001 UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001 UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001

Large Image :  UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001

Product Details:
Place of Origin: CHINA
Brand Name: LANMON
Certification: ISO9001
Model Number: FRP Pipe Fittings
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiatable
Packaging Details: Our principle: Safe and economical
Delivery Time: 15 days
Supply Ability: 1000 pcs per month

UV Protection Fiberglass Tractor Parts Frp Tractor Hood Lightweight ISO9001

Description
Material: Fibreglass Reinforced Plastic Product Name: Fiberglass Fenders/fiberglass Agricultural Equipment Cover/frp Tractor Parts/fiberglass Tractor Canopies
Application: ISO9001 Keyword: GRP FRP Fittings,High Quality And Inexpensive Pipe Fittings
Surface: Gel Coat Paint Color: White Black Brown Blue Etc
Highlight:

fiberglass reinforced plastic pipe

,

large diameter fiberglass pipe

fiberglass fenders/fiberglass agricultural equipment cover/frp tractor parts/fiberglass tractor canopies





Details:

Place of Origin:Qingdao Shandong, China (Mainland)

Brand Name: Lanmon

Model Number:Customized



Application:Various Fields

Surface Treatment: Gel coat Or Paint

Technique:Hand Lay-up RTM SMC

Material:Fibreglass Reinforced Plastic

Certificate:ISO9001



Specifications:

Key Specifications/Special Features:

1st:Mould treatment:
Polish: Mould must be polished before production which will guarantee the good and solidified surface
Clean: Special detergent are used to get the dust away from the mould which will make no dark markings in the
gel coat surface.
Release agent: This will be brushed on the mould to make ejection easily.

2nd Fiberglass and resin:
Gel coat: The color of products is decided by the gel coat,with thickness of about 0.3-0.5mm. UV resistant can
be added.
Surface mat: This is to avoid the air bubble on the surface, and also make fiberglass mat invisible from the finished
surface.
Fiberglass mat: Normally we use 300g/m2 (0.6mm thickness) and 450g/m2 (0.9mm thickness). According to your
requests on the thickness and strength, we will calculate how many layers of fiberglass mat should be used.


3rd
Solidify: The time required for solidifying depends on thickness and weather condition.Normally 24 hours for one
piece to solidify to avoid any deformation after demoulding.
Demould: After solidified, the product will be demoulded
Cut and trim: We will mark the trim line and hole positions on the mould,then trim according to the marks to
gaurantee the mounting dimensions



4th Adhesion: Professional mould and Temperature and worker

5th Surface treatment :

6th Painting

7th Package Solution:
Our principle: Safe and economical
We choose economical packaging on condition that there will be no damage during transportation.Shipping: We are very glad to get the freight cost information for you
as we have long term cooperated forwarder company.





Process: RTM PROCESS

CLOSED MOLD LAMINATING PROCESS

UTILIZING COORDINATED “A-SIDE” AND “B-SIDE” MOLDS TO CREATE PARTS WITH LESS WASTE AND BETTER “B-SIDE” COSMETICS

Light RTM, a closed mold process, utilizes coordinating molds comprised of a rigid “A-side” mold, the base, and a lightweight rigid “B-side” mold that fits inside or on top of the A-side mold. Prior to affixing the two molds together, a pre-sized, cut and formed continuous strand glass mat, woven glass mat or Carbon fiber reinforcement is dry-loaded into the base mold. Rather than use pressure, RTM Light uses a vacuum, which pulls the catalyzed resin through the mold cavity, saturating the fiberglass reinforcement to create a part with consistent thickness, a smooth B-side surface, and controlled fiber/resin ratios. Relative to other Closed Mold Processes, Light RTM offers lower tooling costs.



Utilize Light RTM when your Fiberglass Reinforced Part requires:

A strong, yet lightweight structure

Durability and weight resistance

Smooth "B-side" appearance



Benefits of LRTM vs. Open Mold laminating, include: less waste/scrap and cosmetic “B-side” surfaces. The LRTM laminating process is commonly used in the transportation, recreation, and agricultural markets.



Benefits of Composites
• Strong, durable – long life under even extreme weather exposure
• Lightweight – easy to transport and install
• Reinforcement offer superior sidewall strength
• UV protection
• Fire retardant
• Fast turn-up on production

Value Added Services
• Materials formulated for UV-stability, stain-resistance
• Engineering and design support
Quality and Other Certifications
• ISO-9001
